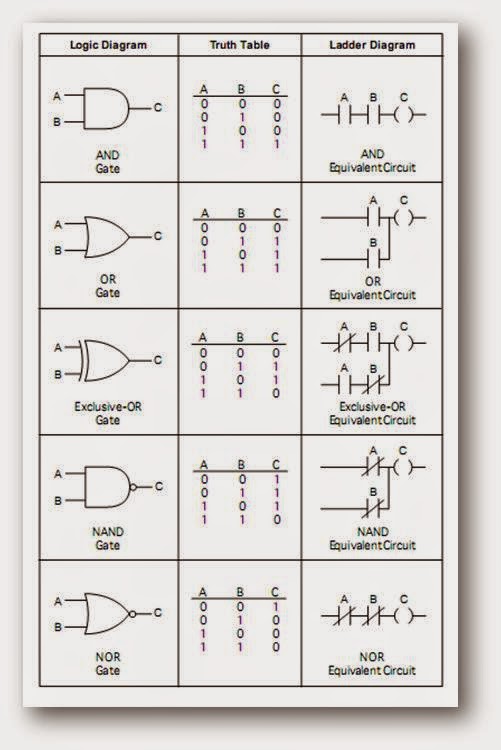

Or gate truth table

The OR gate is a digital logic gate that executes logical disjunction – it works according to the truth table. A HIGH output results if one or both the inputs to the gate are HIGH. If none of the input is high, a LOW output results.

What is OR gate with example?

Input 1	Input 2	Output
1
1	1	1

What is OR gate symbol?

What is the OR gate symbol? The logic or Boolean expression is given for a digital logic OR gate is that for Logical Addition, denoted by a plus sign, ( + ), giving us the Boolean expression of A+B = Q.

What is OR gate in simple words?

An OR gate is a digital logic gate that gives an output of 1 when any of its inputs are 1, otherwise 0. An OR gate performs like two switches in parallel supplying a light, so that when either of the switches is closed the light is on.

What is OR gate diagram?

An OR gate is a logic gate that performs logical OR operation. A logical OR operation has a high output (1) if one or both the inputs to the gate are high (1). If neither input is high, a low output (0) results. Just like an AND gate, an OR gate may have any number of input probes but only one output probe.

Can OR gate have 3 inputs?

Like the AND gate, the OR function can have any number of individual inputs. However, commercial available OR gates are available in 2, 3, or 4 inputs types.

What are the 3 types of logic gates?

All digital systems can be constructed by only three basic logic gates. These basic gates are called the AND gate, the OR gate, and the NOT gate. Some textbooks also include the NAND gate, the NOR gate and the EOR gate as the members of the family of basic logic gates.

Is OR gate or AND gate?

Key Differences Between AND Gate and OR Gate AND gate provides the product of two binary values as its output. However, the OR gate gives the summation of the two applied binary inputs as its output. AND gate follows the rule of logical conjunction.

Why logic gates are used?

Computers need a way to manipulate those 1s and 0s, so that they can eventually do more complicated operations like calculating the 50th digit of π. Computers use logic gates to transform the 1s and 0s from input wires. A logic gate accepts inputs and then outputs a result based on their state.

Where is NOR gate used?

Logic NOR gate can be used to construct EX-OR gates and some other real time applications. One of its real time applications is 'Mixer tank'. It is explained below. If you observe the below diagram, we use a 3-input NOR gate to control the flow of ingredients of a mixer tank.

How does OR gate work?

An OR gate is a digital logic gate with two or more inputs and one output that performs logical disjunction. The output of an OR gate is true when one or more of its inputs are true. If all of an OR gate's inputs are false, then the output of the OR gate is false.

What is a universal gate?

A universal gate is a gate which can implement any Boolean function without need to use any other gate type. The NAND and NOR gates are universal gates. In practice, this is advantageous since NAND and NOR gates are economical and easier to fabricate and are the basic gates used in all IC digital logic families.

What is basic logic gate?

A Logic gate is a kind of the basic building block of a digital circuit having two inputs and one output. The input and output relationship is based on a certain logic. These gates are implemented using electronic switches such as diodes, transistors.

Why NOR and NAND gate is universal?

The OR, AND, and NOT are the three basic logic gates as they together can construct the logic circuit for any given Boolean expression. NOR and NAND gates have the property that they individually can be used to hardware-implement any logic circuit. For this reason, the NAND and NOR gates are called universal gates.

What is positive OR gate?

Positive Logic OR gate. The Positive Logic OR gates output achieves its ACTIVE state, (HIGH), when “one or more of its inputs” achieve their ACTIVE state, (HIGH). Negative Logic OR gate. The Negative Logic OR gates output achieves its ACTIVE state, (LOW), when “all of its inputs” achieve their ACTIVE state, (LOW).

What is 3 input OR gate?

A three-input gate has eight possibilities (000, 001, 010, 011, 100, 101, 110, and 111) for input states. The number of possible input states is equal to two to the power of the number of inputs: This increase in the number of possible input states obviously allows for more complex gate behavior.

What is OR gate and its function?

The function of an OR gate is to find the maximum between the inputs which are binary in nature. It is one of the basic gates used in Boolean algebra and electronic circuits like transistor-transistor logic, and complementary metal-oxide semiconductors make use of it.

What is exclusive AND gate?

An exclusive OR gate (XOR gate) is a digital logic gate that is implemented using transistors in order to act as an electronic switch used in implementing Boolean functions. It is built by combining standard logic gates such as the common NAND and NOR gates in order to produce the more complex function of this gate.

Which IC is used for OR gate?

Functional name	Function	Pin numbers
4075	Triple 3-Input Positive OR Gate	14
4078	8-Input Positive OR/NOR Gate	14
4094	8-Stage Shift-and-Store Bus Register	16
4245	Dual Supply Octal Bus Transceiver3-state	24

What is the output of OR gate?

An OR gate is a logical gate that has two or more inputs that can give an output of 1 which is called high or 0 which is called low. The output of an OR gate comes back low only when all the inputs attached to the OR gate have their value low. In all other situations, the output of the OR gate is one.
