When the control mechanism is activated and power flows to the coil of the 12-volt solenoid, a powerful magnetic field is generated around the coil assembly. Due to the ferrous metal construction of the plunger, this field has a strong attractive effect on it, pulling it rapidly towards and into the hollow coil core.

How does a DC solenoid valve work?

Solenoid valves are control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.

How many amps does a 12V solenoid draw?

A 12 volt DC coil opens and closes the valve in less than one second. It is rated for continuous service and draws 2.50 amps, for a nominal power consumption of 40 watts.

What is the 5 five common problems for solenoid?

Rusting, power failure, irregular pressure, missing equipment, an incorrect amount of voltage or current, dirt stuck in the system and corrosion are some of the possible reasons why a solenoid valve may not properly close or open.

Can solenoids run on DC?

Solenoid valves incorporate the use of coils and metal cores to regulate the flow of liquids and gases. They are electrically controlled devices that require either AC or DC energy to power the coils, which then convert the electrical energy into linear motion.

Does solenoid work on DC?

Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.

Does a DC solenoid have positive and negative?

Electrical polarity means that an electrical circuit has a positive and negative pole. A common question that is asked about solenoid valve coils is whether polarity needs to be considered. The simple answer is that polarity does not matter on solenoid valve coils.

What is the difference between AC and DC solenoids?

DC solenoids are quieter and function more slowly than AC solenoids. They are also less powerful than AC solenoids. AC solenoids can run the risk of burning out if they malfunction and remain stuck in the open (full-current) position for too long.

What is a DC solenoid?

What is a DC solenoid? It is an electric part that emits an electromagnetic field through a copper wire to pull in a magnetic, movable iron core. When current flows through the wire, the iron core is attracted toward the fixed iron core inside the wire, constantly drawn to the space within the electric current.

Is solenoid valve DC or AC?

While solenoid valves are powered by DC, that current passing through the coil creates an electromagnet which produces an attractive force on the armature. When current is applied through the coil, the armature will always be pulled towards the coil, regardless of the contact and current polarity.

How many DC amps should a 12 volt battery have?

Even though most car batteries are only 6 or 12 volts, a 12-volt battery can produce as much as 600 amps. Amperage can be thought of as the volume of electricity that's generated, but the voltage can be thought of as the “pressure” of the electricity.

How many ohms should a DC solenoid have?

It is listed as a 2W, 12V solenoid. 2W/12V=0.1667A or 72 ohms for the coil DCR. Usually you want a series R at about 80% of the DCR so in my case that would be 57 ohms.

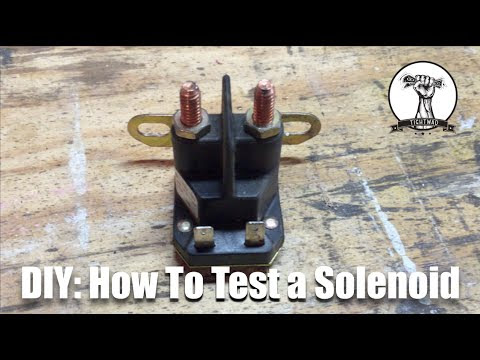

How do you check a 12 volt solenoid?

And if you get continuity at that point you'll hear a click and then you'll get the continuity. Then

What are the two main causes of solenoid failure?

Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. Burnt out coils cannot be repaired and will need to be replaced.

Why do solenoids usually fail?

When a solenoid is first energized, its coil receives a pulse of high inrush current that decreases as the plunger closes. If the plunger does not close, the high inrush current continues, which can cause the coil to overheat and burn out. This is the most common cause of solenoid failure and spotting it is easy.

Will 12V operate a 24V solenoid?

You CANNOT run a 12v solenoid on a 24v circuit. It will damage/destroy your solenoid. Please do not attempt 12V components on 24V, you will end up with magic smoke or in worst case fire!

How much voltage does a solenoid need?

Every solenoid valve has a nominal actuation voltage, which is usually based on common power supply voltages such as 12 VDC, 24 VDC, 110 VAC, or 220 VAC. The nominal voltage is typically printed somewhere on the valve body or coil and is the voltage required to actuate (shift) the valve.

Why are there three wires on a DC solenoid valve?

The third connection is for a protective ground connection, and is probably only present because you have the DIN connector variant, as indicated by the letter 'Y' in the part number. It's use would be more necessary if you had one of the 100V AC to 220V AC coil types.

Why DC is not used for?

First of all, DC is difficult to generate because primarily it is generated by batteries and electrochemical of photovoltaic cells. Power loss during transmission is more in direct current as compared to alternating current. For the same value of voltage DC is more dangerous than AC.

Can I use relay for DC?

No, it cannot be used. The element characteristics of Solid-state Relays will not allow it to reset if a DC load is used.
